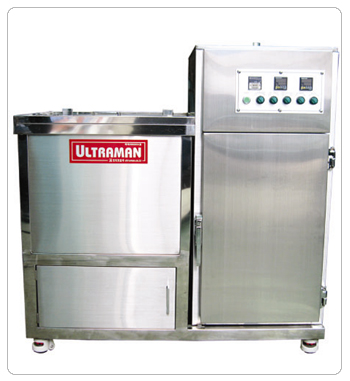

Wash and Dryer for SCBA Cylinder



The supersonic wave means the higher wave than audio frequency and generally stands for frequency more than 16 KHz. Once the supersonic wave is launched in solvent, the expansion and contraction occur in liquid by the vibration of molecule and, when the energy of supersonic wave becomes larger, the cohesive power of the liquid is destructed and millions of tiny cavities are made. It is called CAVITATION. Powerful energy are created through explosion of these cavities. By this powerful shock wave, cleaning from the surface of the object to the deep inside is made in short time without any damage.


1200(L) X 670(W) X 1210(H)mm

Weight Max. 120kg
Supply Voltage 220V
Power Consumption Max. 10kW
SUS 304 1.5t(Stainless steel)
Basket 280(W)×420(D)×210(H)mm
Supersonic 28kHz
Flow 55ℓ


As being operated by supersonic wave of 28 KHz, our Face Mask Supersonic Cleaning System can sterilize perfectly bacillus and bacterium hidden on the deep inside of mask.

The first process is washing and the second is rinsing . While rinsing, some ozone is neutralized with water. As ozone-neutralized water is overflowed to the first process, supersonic wave wash is also possible in ozone water.

After supersonic washing, you can set the same basket with mask in dryer successively, Because the baskets of both supersonic washing and drying are designed in the same size.

Dual basket type of washer Washer and dryer Supersonic wave transducer
Easy to operate Test for removing impurities
